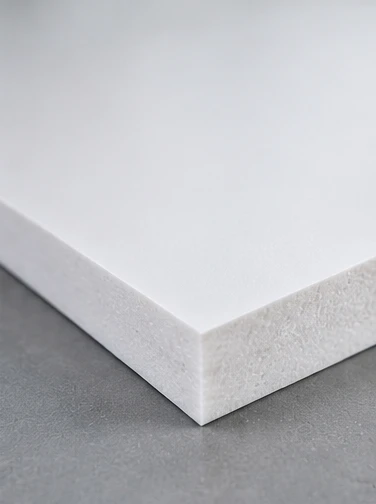

A PVC partition board provides a practical substrate for creating non-load-bearing interior divisions while allowing manufacturers and contractors to adapt the panel to different layouts. Its foamed PVC core gives the sheet a lighter construction than many solid plastic materials, while the rigid board structure provides enough stability for properly supported partition and decorative panel systems.

The material can be fabricated into straight panels, cut-out screens, decorative dividers, cabinet partitions, office separators, and customized interior components. Its smooth surface also creates a suitable base for painting, laminating, printing, or other finishing processes, allowing the finished partition to match different interior design styles.

Technical Parameters

Item	Typical Specification
Product Name	Partition PVC Foam Board
Material	Rigid foamed PVC
Thickness	1.8–30 mm
Regular Size	1220 × 2440 mm
Large Sizes	1220 × 3050 mm / 1220 × 2050 mm
Density	Approx. 0.31–0.80 g/cm³, depending on specification
Standard Color	White
Custom Colors	Available according to order requirements
Surface	Smooth and flat
Processing	Cutting, drilling, routing, CNC machining, engraving, laminating and painting
Customization	Thickness, density, size, color, packing and OEM requirements

The final specification should be selected according to panel dimensions, support spacing, fixing method, expected handling conditions, and the required finished appearance. Kaichuang's current interior-fit-out range supports customized thickness, density, sheet size, color, and processing requirements.

1. Lightweight Panel Construction

The foamed PVC structure reduces the material's overall weight compared with many solid sheet alternatives. This can make large panels easier to transport, position, cut, and install, particularly during commercial interior projects where numerous panels need to be handled on site.

2. Moisture-Resistant Material

PVC offers good resistance to moisture compared with many conventional wood-based boards. This makes the material useful for interior partitions in kitchens, bathrooms, utility areas, commercial premises, and other spaces where occasional humidity or cleaning exposure needs to be considered. Finished-system performance still depends on edge treatment, joints, fasteners, and installation details.

3. Easy to Fabricate

The board can be processed with common fabrication equipment. Contractors and manufacturers can cut panels to size, drill fixing holes, create grooves, route edges, or use CNC equipment to produce customized shapes. This flexibility is especially useful when partition designs contain openings, curves, slots, or decorative patterns.

4. Smooth Finishing Surface

A consistent surface provides a useful base for subsequent finishing. Depending on the project, panels can be painted, laminated, or otherwise decorated to achieve a specific visual effect. This allows the same basic board material to be adapted to different commercial and residential interior concepts.

5. Flexible Thickness and Density Selection

Partition projects do not all require the same board specification. A lightweight decorative divider may require a different thickness and density from a larger office partition or CNC-fabricated screen. Selecting the specification according to panel size and support structure helps avoid using unnecessarily heavy or costly material.

6. Suitable for Customized Panel Design

A PVC foam partition panel can be fabricated into simple rectangular dividers as well as more customized interior elements. CNC routing and engraving allow manufacturers to introduce openings, patterns, lines, and geometric details without changing the basic sheet material.

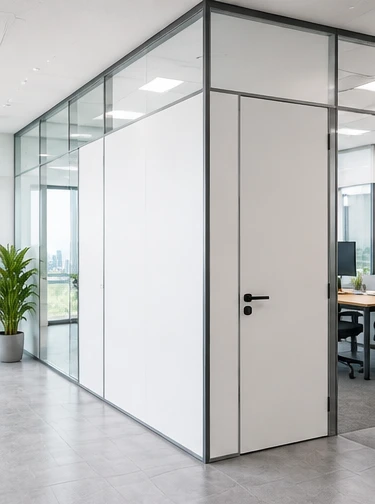

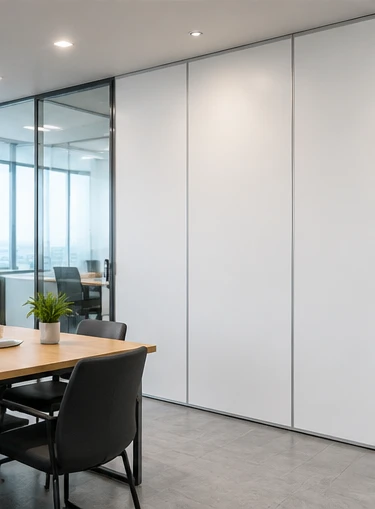

Office Partitions

Partition PVC foam board can be fabricated into internal office dividers, workstation separators, meeting-room screens, and decorative partition systems. Its relatively low weight and machinability are useful when the project involves frequent customization of panel dimensions or layouts.

Commercial Interior Fit-Out

Retail stores, hotels, restaurants, showrooms, and exhibition spaces often require partitions that combine functional separation with visual presentation. PVC foam board can be cut and finished to create customized background panels, display dividers, reception-area components, and decorative structures.

Residential Room Dividers

For homes, the board can be used for decorative room separation, storage-area divisions, wardrobe partitions, and customized interior screens. The surface can be finished to coordinate with the surrounding furniture and wall design.

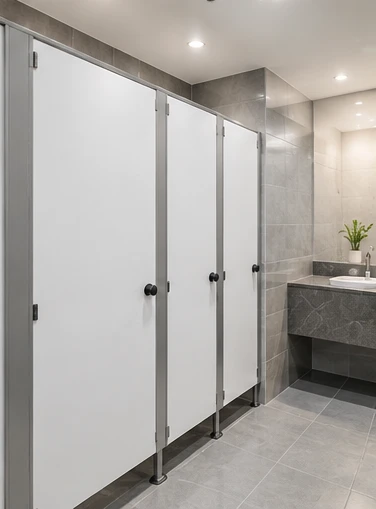

Bathroom and Humid-Area Partitions

PVC's moisture resistance makes it a potential material for appropriately designed interior partition systems in humid environments. However, the complete system should be designed with suitable joints, edges, fasteners, and installation details rather than relying on the board alone for waterproofing.

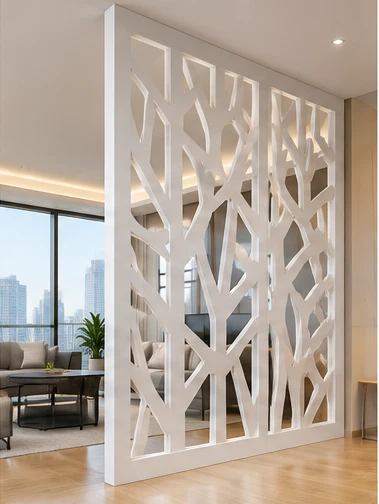

Decorative Screens

CNC machining can transform the board into patterned screens and feature panels. Designers can create geometric openings, repeated patterns, or customized shapes for commercial and residential interiors.

Cabinet and Furniture Partitions

Beyond room separation, the material can also be fabricated into internal dividers for cabinets, storage units, wardrobes, and furniture structures. Current Kaichuang product information lists partitions and internal furniture panels among potential uses of PVC foam board.

The correct board should be selected according to the panel size, thickness, density, support method, surface treatment, and intended environment rather than simply choosing the lowest-cost sheet.

For smaller decorative dividers, a lighter specification may provide sufficient rigidity when properly supported. Larger panels, frequently handled structures, or components requiring more substantial fixing may benefit from a thicker or higher-density board. For CNC-patterned partitions, the machining method and remaining material around cut-outs should also be considered.

For wholesale orders, buyers should confirm the required thickness, density, dimensions, color, surface finish, quantity, and packaging before production.

1.Is Partition PVC Foam Board suitable for room dividers?

Yes. It can be used for non-load-bearing room dividers, decorative screens, office separators, commercial partitions, and other appropriately supported interior panel systems. The thickness and density should be selected according to the panel dimensions and installation method.

2.What thickness is suitable for partition panels?

There is no single thickness for every project. The required thickness depends on panel size, support spacing, fixing method, and desired rigidity. Kaichuang can supply PVC foam board from approximately 1.8 to 30 mm and can discuss customized specifications for different projects.

3.Can the board be CNC cut into decorative patterns?

Yes. The material can be cut, drilled, routed, engraved, and CNC machined. This makes it suitable for partition screens containing geometric patterns, openings, grooves, or customized shapes.

4.Can Partition PVC Foam Board be painted or laminated?

Yes. Its smooth surface can be used for various finishing processes, including painting and laminating. The selected coating or adhesive should be compatible with PVC and tested under the intended service conditions.

5.Is PVC foam board suitable for humid interiors?

PVC foam board has good moisture resistance and is used in various interior applications where humidity is a consideration. However, the final partition system should also address joints, edges, fasteners, adhesives, and installation conditions.

6.Can the board be customized for wholesale orders?

Yes. Customized thickness, density, dimensions, colors, packing, and OEM requirements can be discussed for bulk production.

Kaichuang Plastic supplies PVC foam board for interior fit-out, furniture, cabinet, partition, and decorative panel applications. Its current product range covers multiple thicknesses and densities, with standard 1220 × 2440 mm sheets as well as larger and customized dimensions. The company also supports fabrication-oriented requirements such as CNC routing, drilling, engraving, laminating, and painting.

For distributors, furniture manufacturers, interior contractors, and project buyers, the specification can be discussed according to the finished panel rather than using a one-size-fits-all material recommendation. This makes it easier to match density, thickness, sheet size, surface finish, and packaging with the actual project requirements.

Looking for a reliable partition PVC foam board for interior projects or wholesale distribution?

Send Kaichuang Plastic your required thickness, density, sheet size, quantity, color, and application, and the appropriate material specification can be discussed according to your project.

ZIBO KAICHUANG PLASTIC CO., LTD.
Product: Partition PVC Foam Board
Supply: Wholesale / OEM / Customized Production
Suitable For: Interior Contractors / Furniture Manufacturers / Distributors / Project Buyers

Contact us today for product specifications, samples, and a customized quotation.
